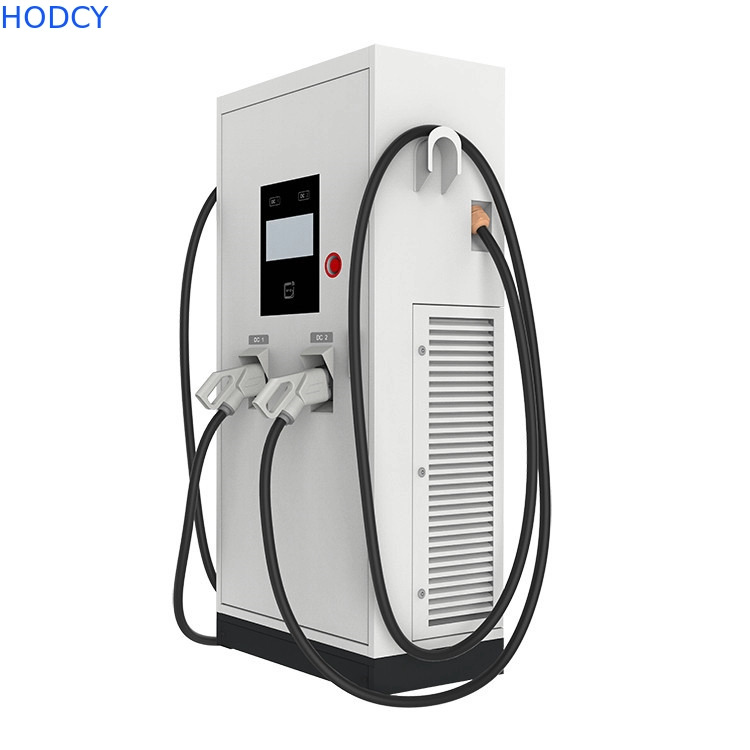

240KW GBT Fast ccs DC Charger Electric Vehicle Charging Station

PRODUCTS NAME: Fast Electric Car EV Charging Stations
CONNECTION: Type 1/Type 2
CHARGING PORT: 3 Ports, 2 Ports, 1port, 4 Ports, Type C
APPLICATION: Home Veichles Charging Stations
CHARGING POWER: Schuko/Nema/UK Plug / Au Plug/ CEE
PLUG TYPE: SAE J1772/IEC 62196
PAYMENT METHOD: Payment Method
INPUT VOLTAGE RANGE: 230V±15%, Signal-phase
POWER PLUG TYPE: Schuko/Nema/UK Plug / Au Plug/ CEE

Description

360KW DC Split Type European Standard EV Chargers Fast Charging Stations

Main features:

Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is ≤5%.
The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high.
The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep technology and the wheeling technology ensure the high-efficiency operation of the system;
Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available;
Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and
operating status;
The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
Module hot swap technology makes maintenance more convenient;
Working environment temperature -20+50 °C
Scope of application
Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics
car, etc.) city public charging station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places,etc.; intercity highway charging stations, etc.

Product number KYCP-DC-45KW KYCP-DC-60KW KYCP-DC-80KW
Detailed specification rated power 45KW 60KW 80KW
Charging equipment User Interface 7 inch LCD color display touch screen
installation Floor-standing/Down and down
Routing mode device size 635*423*1600(mm)
Input voltage AC380V±20%
Input frequency 45~65Hz
The output voltage 200-750VDC
Single gun output current range 200V-500V 200V-500V 200V-500V
The output voltage 0-90A 0-120A 0-160A
Single gun output current range 200V-750V 200V-750V 200V-750V
The output voltage 0-60A 0-80A 0-107A
Charging equipment Single gun output current range 0-112A 0-150A /
Cable length 5m
Electrical index Measurement accuracy Level 0.5
Current limit protection value ≥110%
Voltage regulation accuracy ≤±0.5%
Steady flow accuracy ≤±1%
Ripple coefficient ≤±0.5%
effectiveness ≥94.5%
Power factor ≥0.99 (50% load or more)
Harmonic content THD ≤5% (50% load or more)
feature design HMI 7 inch LCD color display touch screen, LED indicator
Charging mode Auto full / fixed power / fixed amount / fixed time
payment method Credit card payment / APP payment / scan code payment
Communication Interface Ethernet 2/3/4G (optional)
Safety design Executive standard GBT 20234, GB/T 18487, GB/T 27930, NBT 33008
security function Charge gun temperature detection,
overvoltage protection,
undervoltage protection,
overload protection,
short circuit protection, grounding protection,
over temperature protection,
low temperature protection,
insulation monitoring protection,
polarity reverse connection protection,
lightning protection,
emergency stop protection,
leakage protection
Environmental indicators Operating temperature -25°C~+50°C
Working humidity 5%~95% non-condensing cream
Working elevation <3000m
Protection level IP54
cooling method Forced air cooling
Noise control ≤60dB
MTBF
100,000 hours
