Description
Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-SLiFePO43000cycle/6000cycleBuilt-in Smart BMS50Ah/80ah/100Ah/200AhSolar, Wind, UPS Energy StorageRS232, RS485, CAN

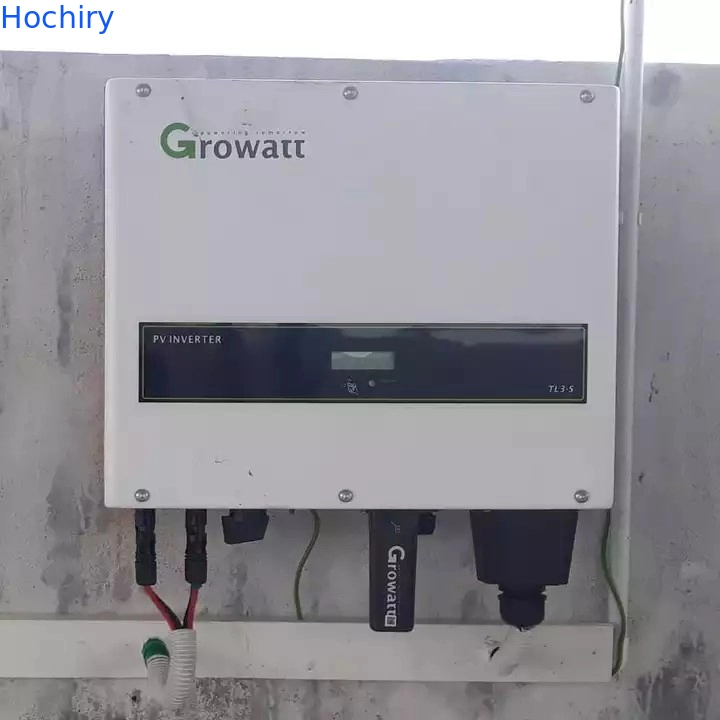

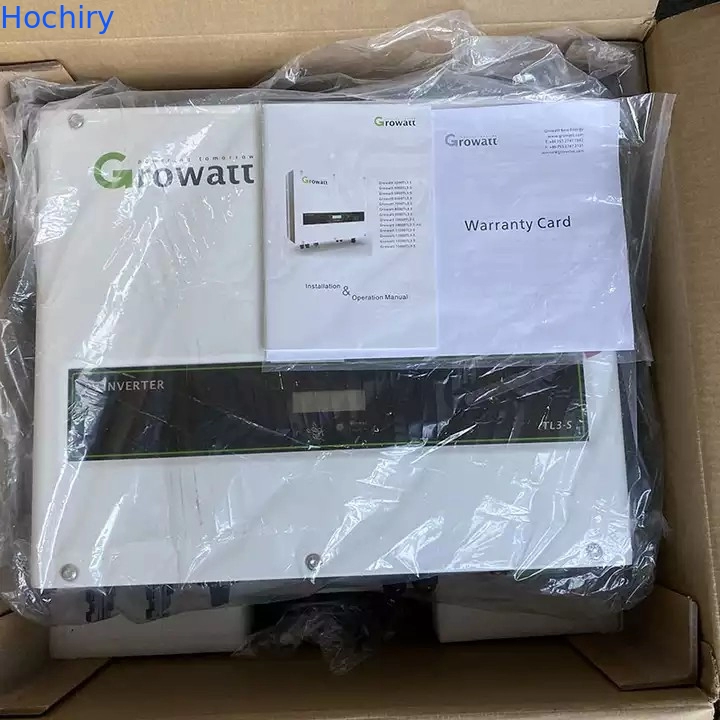

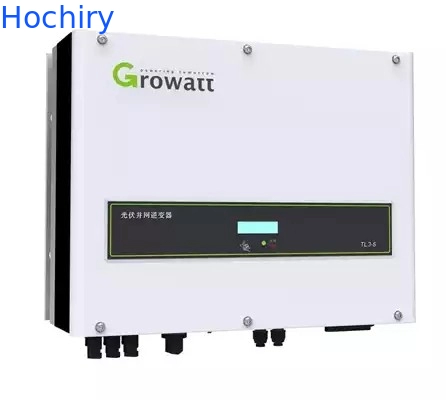

Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S
| Model |
8000TL3-S |
9000TL3-S |
10000TL3-S |
11000TL3-S5500M |
| Max. recommended PV power (for module STC) |
9600W |
10800W | 12000W |
13200W |
| Max. DC voltage | 1000V | 1000V | 1000V | 1000V |
| PV voltage range |
160V-1000V |
160V-1000V |
160V-1000V |
160V-1000V |
| Nominal voltage |
600V |
600V |
600V |
600V |
| MPP voltage range at Full Power | 360V-850V | 400V-850V | 450V-850V | 450V-850V |
| Max. input current | 11.5A/11.5A | 11.5A/11.5A | 13A/13A | 13A/13A |
| Number of independent MPP trackers/strings per MPP tracker | 2/1 | 2/1 | 2/1 | 2/1 |
| Output (AC) | ||||
| Rated AC output power | 8KW | 9KW | 10Kw | 11Kw |
| Max. AC apparent power | 8.8kVA | 9.9kVA | 11kVA | 12.1kVA |
| Max. output current | 13.3A | 15A | 16.7A | 18.3A |
| AC nominal voltage; range | 230V400V: 320-478V | 230V400V: 320-478V | 230V400V: 320-478V | 230V400V: 320-478V |
| AC grid frequency; range | 50Hz,60Hz / 5Hz | 50Hz,60Hz / 5Hz | 50Hz,60Hz / 5Hz | 50Hz,60Hz / 5Hz |
| Displacement power factor, configurable |
0.8leading…
0.8lagging |
0.8leading…
0.8lagging |
0.8leading…
0.8lagging |
0.8leading…
0.8lagging |
| THDi | <3% | <3% | <3% | <3% |
| AC grid connection type | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE |
