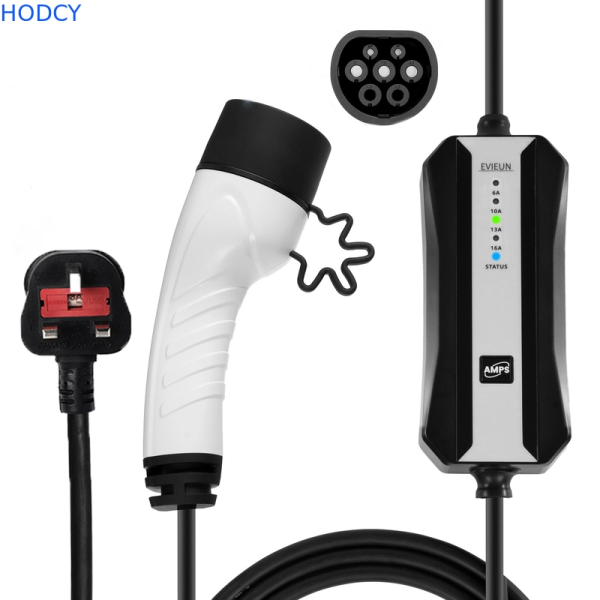

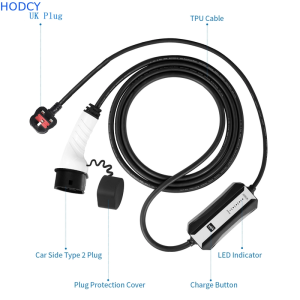

Portable Electric Car Charger 16A/32A Type 2 (IEC 62196-2) Fast Portable Charger for Home

PRODUCT NAME: Portable EV Charger
CONNECTION: Type 1/Type 2
OUTPUT CURRENT RANGE: 0~32A
APPLICATION: Home Veichles Charging Stations
PLUG TYPE: SAE J1772/IEC 62196
PAYMENT METHOD: Payment Method
INPUT VOLTAGE RANGE: 230V±15%, Signal-phase

Description

Portable Electric Car Charger 16A/32A Type 2 (IEC 62196-2) Fast Portable Charger for Home

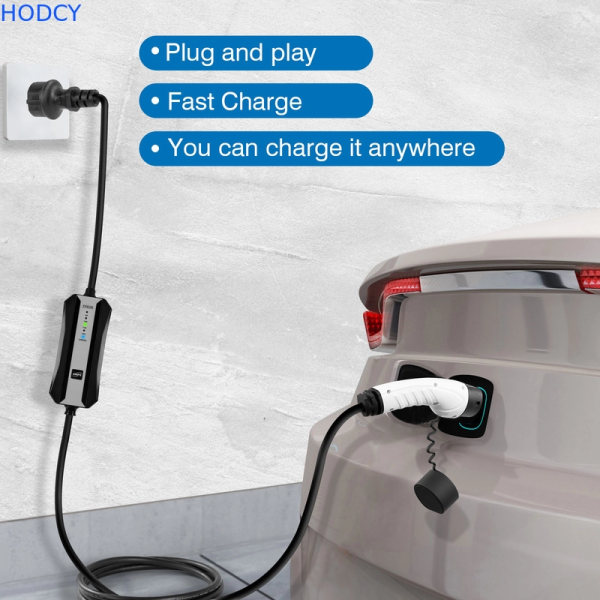

This EV charger is compact and durable,it can fit most driveways and garage and perfect for home use. When you go to the office, picnic, date and more, you can go with this portable Ev charger and use it as emergency charging in case of emergency.



1 Electric parameter
1.1 Rated Frequency 50/60Hz
1.2 Rated current 8/10/13/16/32A
1.3 Rated voltage single-phase, 230V±15%, 50/60Hz
2 Mechnical Parameter
2.1 IP Code IP66
2.2 Charging Adapter Cable 5 meters cable or custom length
2.3 Dimensions W × D × H = 240mm × 90mm × 70mm
2.4 Weight <5kg
2.5 Input Plug Standard Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
3 Functional Description
3.1 Charging Control Model Plug and play
3.2 Display Screen OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
3.3 Indicator Light 3 indicator lights (indicate 3 status include power, connect, charging and fault)
3.4 RCD type Type A

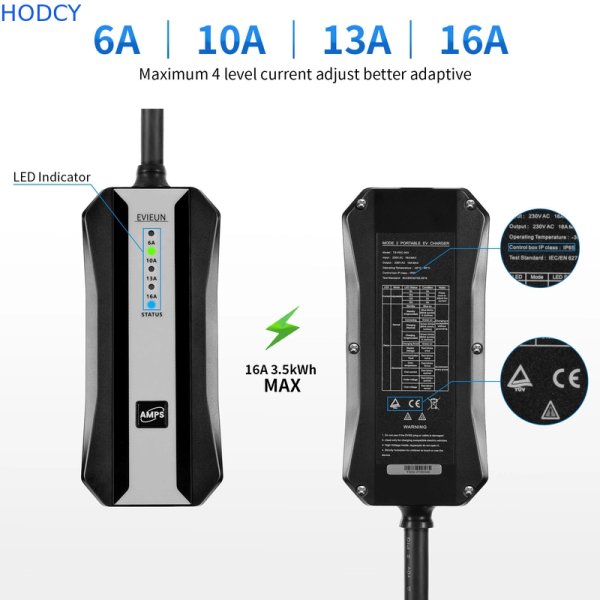

3.5 Adjustable output current Button options: 8A/10A/13A/16/32A
3.6 Preset function Preset charging time trough the button
3.7 Safety Protection surge protection, over temperature, leakage, over/under voltage, over current, ground protection
4 Environmental Conditions
4.1 Operational environment indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
4.2 Vibration <0.5G, no violent vibration and impact
4.3 Altitude ≤2000 meters
4.4 Storage Temperature -30 ~ 75 ℃ (-22 ~ 167 ℉)
4.5 Operating Temperature -30 ~ 55 ℃ (-22 ~ 131 ℉)
4.6 Operating humidity 95%RH, no water droplet condensation
